Meet various vehicles applications
By the end of June 2018, more than 200,000 units/sets have been used in various vehicle types:
■ Passenger vehicle (bus/commuter): small sea lion, Coster, 8.5m-12m passenger bus, 18m dual source trolleybus
■ Trucks: mini van and mini truck under 2.5 tons, 3.5-7.5 tons light trucks, 18-55 tons heavy trucks
■ Special-Purposed vehicles: sanitation truck, sprinkler truck, dust suppression truck, dock tractor, tunnel engineering tractor
■ Passenger car: A-class sedan, SUV
Sample provide:
YESSample freight payer:
BuyerTerm of payment:
T/T, L/C, D/PCustomized:
YESWarranty:
24 MonthsDelivery Time:
14-30 working days for customized EV motor controllerTransportation:
Express · Sea freight · Land freight · Air freightPackage:
Standard Export Package Carton/WoodAvailability:
OEM/ODM, Minmum Order RequestPlace of Origin:
ChinaShipping Port:
ShandongCertification:
CE, EAC, ISO9001, OHSAS18001, TS16949, SGS
V6-H-2D75G Master drive motor controller
Technical Parameter
|
Applicable motor type |
Permanent magnet synchronous motor、Three phase asynchronous motor |
|
Applicable vehicle type |
SUV, MPV , Passenger Car |
|
Product type |
V6-H-2D75G |
|
Rated input voltage |
DC 336V |
|
Rated power |
75kW |
|
Input voltage range |
200V~500V |
|
Rated output current |
253A |
|
Maximum output current |
470A |
|
Output frequency range |
0～1000Hz |
|
Protection level |
IP68 |
|
Cooling type |
Water cooling |
|
Outline dimension |
350*377*154（mm） |
|
Weight |
9.8kg |

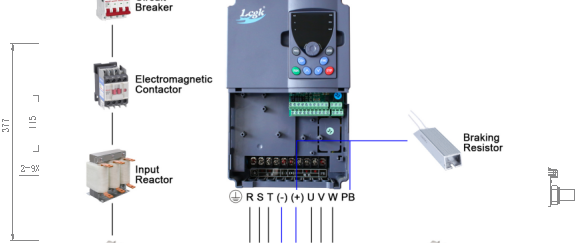

Outline dimension
Application
 |
 |
 |
 |
 |
 |
 |
 |
 |
Shandong V&T Technologies Co.,Ltd. is committed to R&D and manufacturing of motor controller.
In China's first design, production and sale of "Electrical Multi-in-One Integrated Products“,and it has become the mainstream of Pickup E-drive System market. Multi-in-one products can reduce the number of connectors, wiring harness and structural parts, reduce the cost, reduce the volume and weight, and improve the reliability of the electronic control system. Multi-in-one new energy vehicle products have been widely used with good market reaction. V&T Electric Vehicle EV Motor Controller are Widely used in new energy passenger cars, commercial vehicles, passenger cars.
If you are interested in our products and want to know more details,please leave a message here,we will reply you as soon as we can.
