VA Series AC Drive for Machine Tool Spindles

VA series is a high performance AC drive for machine tool spindles. It is compatible with synchronous and asynchronous motor. VA series support RS485 communication and EtherCAT bus, and combine with the upper computer to have multiple servo drives controlled with networking and field bus system.

Sample provide:
YES
Sample freight payer:
Buyer
Term of payment:
T/T, L/C, D/P
Customized:
YES
Warranty:
18 Months
Delivery Time:
5-7 Working Days For Standard Series; 7-14 Working Days For Customized AC Drives
Transportation:
Express · Sea Freight · Land Freight · Air Freight
Package:
Standard Export Package Carton/Wood
Availability:
OEM/ODM, Minmum Order Request
Place of Origin:
China
Shipping Port:
Shandong
Certification:
CE, EAC, ISO9001, OHSAS18001, TS16949, SG

Product Description

Product Overview

Item	Description
Product Name	Frequency Inverter/ AC Drive
Model Number	VA-H-4TxxG
Power Range	3.7kW-160kW
Rated Input Voltage	3 phase 380V/480V
Rated Output Voltage	3 phase 0 to rated input voltage
Input Frequency	50Hz/60Hz
Applicable Motor	Asynchronous Motor, Synchronous Motor
Control Mode	V/F Control, Vector Control, Sensorless Vector Control, Sensor Vector Control
Communication	Modbus 485 RTU, EtherCAT
IP Class	Standard IP20
Overload Capacity	150% 1 minute, 180% 10 seconds, 200% 0.5 second, interval: 10 minutes (inverse time lag feature)

Model Explanation

Product Catalogue

VA−H−4TXXG

Power（kW）		3.7	5.5	7.5	11	15	18.5	22	30	37	45	55	75	90	110	132	160
Motor Power（kW）		3.7	5.5	7.5	11	15	18.5	22	30	37	45	55	75	90	110	132	160
Output	Voltage（V）	3 phase 0～Rated Voltage
	Rated Current（A）	9	13	17	24	30	39	45	60	75	91	112	150	176	210	253	304
	Max Current（A）	16	23	31	43	54	70	81	108	135	164	202	270	317	378	400	547
	Overload capacity	150% 1 minute, 180% 10 seconds, 200% 0.5 second, interval: 10 minutes (inverse time lag ;feature)
Input	Voltage/ frequency	3 Phase 380V～480V；50Hz/60Hz
	Allowable voltage range	323V～528V；Voltage imbalance ：≤3% ；allowable frequency fluctuation：±5%
	Rated Current（A)	10	15	19	26	33	43	50	66	83	100	123	165	160*	196*	232*	282*
Braking unit		Built-in as standard								Built-in as optional
IP		IP20
Cooling mode		Natural air cooling			Forced air cooling

Technical Specification

Control Characteristics	Control mode	synchronous motor control without encoder ;asynchronous motor control without encoder	synchronous motor control with an encoder/asynchronous motor control with an encoder
	Startup torque	0.2% rated speed on motor，180% rated torque	0 speed,180% rated torque
	Range of speed regulation	1:200	1:1000
	Precision of steady speed	± 0.5%	± 0.02%
Product Functions	Key functions	undervoltage regulation, speed tracking, torque limitation, multi-stage speed, motor self-learning, weak magnetic control, current limitation.
	Designated speed mode	RS485, keyboard, terminal, analog quantity, multi-stage speed, simple PLC, PID, pulse frequency.

	Braking capacity on Power Consumption	400V Drive：brake unit voltage：650～750V。
	Dual 485 communication ports	Dual 485 communication interface supports Modbus protocol（RTU）;standard operation panel meet remote control , up to 500 meters.
	Common DC bus	The whole series meet common DC bus power supply for multiple drives.
	Independent air duct	The whole series uses independent air duct design,and support radiator cabinet with installed outdoors
Protection Function	undervoltage, overcurrent protection, over-voltage protection, abnormal comparison level, self-learning to identify fault, protection of the module, radiator overheating protection, overload protection on Drive, overload protection on motor, peripheral protection, current detection, the output of a short circuit, abnormal operation of the power,abnormal input power, EEPROM anomaly, relay and abnormal disconnection, analog input, temperature sampling disconnection, encoder, an abnormal motor overheating (PTC), communications, hardware, overload protection.
Efficiency	Rated power: 7.5kW and lower power grade≥93%；11kW to 15kW≥95%。
Environment	Operating site	The product should be mounted vertically in the electric control cabinet with good ventilation.Horizontal or other installation modes are not allowed.it is air cooling
	Ambient temperature	-10 to +40℃, the product must be de-rated output current for the ambient temperature between 40℃ ;to 50℃, the rated output current must be de-rated for 1% per 1℃ ;temperature rise
	Humidity	5～95%，no condensing
	Altitude	0～2000m, the product must be de-rated rated output current for the altitude above 1000 meters, the rated output current must be de-rated for 1% per 100 meters rise
	Vibration	3.5 m/s2，2～9Hz；10 m/s2，9～200Hz；15 m/s2，200～500Hz。
	Storage temperature	−40～+70℃。

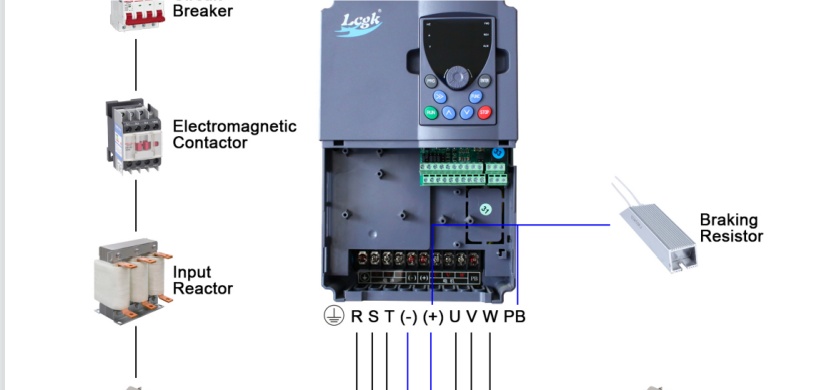

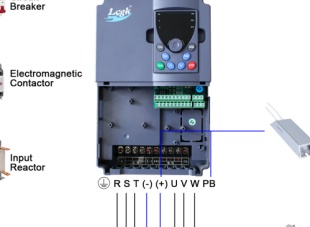

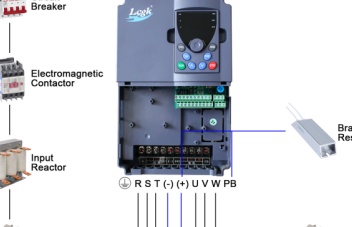

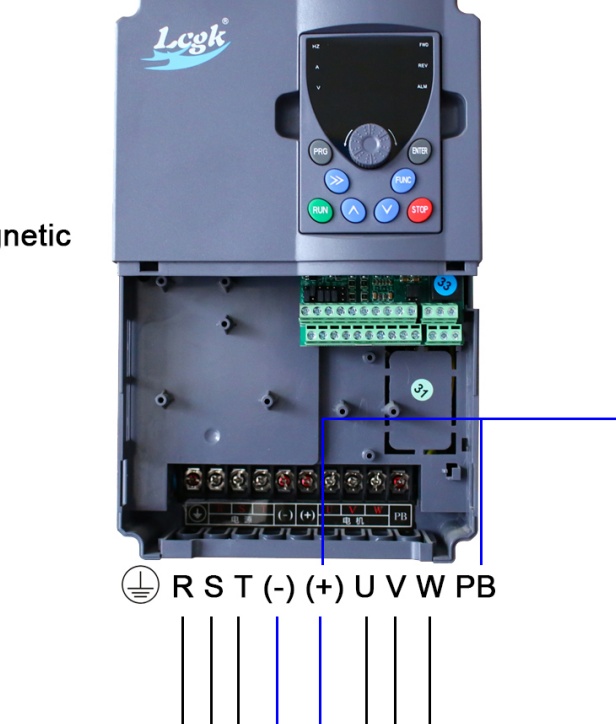

AC Drive for Machine Tool Spindles Motor Wiring

Short circuit or grounding of the EtherCAT VFD output terminals is prohibited. Otherwise, it will cause damage to the internal components of the drive.

Avoid output cables (U/V/W) short circuit or short circuit to enclosure, otherwise there is a risk of electric shock.

It is strictly forbidden to connect a capacitor or phase lead LC/RC noise filter to the output of the Positioning Control Inverter, otherwise the drive will be damaged.

When a contactor is installed between the drive and the motor, the switching action of the output contactor cannot be performed during the operation of the drive, otherwise a large current will flow into the drive to and the drive will report fault information.

Cable length between drive and motor: When the cable between the RS485 Communication VFD and the motor is too long, the high-order harmonic leakage current at the output will adversely affect the drive and peripheral devices. It is recommended to install a output AC reactor when the motor cable exceeds 100 meters, and contact the manufacturer to inquire whether the carrier frequency needs to be modified.

Installation Dimension

VA−H−4T7.5G and below power class VA−H−4T11G and above power class

Voltage	Model	Appearance, Installation Dimensions（mm）								weight（kg）
		W	H	D	W1	H1	D1	T1	Hole d
400V	VA−H−4T3.7G	155	249	197.7	136	232	69	8	5.5	3.3
	VA−H−4T5.5G
	VA−H−4T7.5G
	VA−H−4T11G	210	337	230	150	324	107.5	2.5	7	8.5
	VA−H−4T15G
	VA−H−4T18.5G	285	440	250	200	425	107.5	2.5	7	17
	VA−H−4T22G
	VA−H−4T30G
	VA−H−4T37G	315	575	247	220	553	123.5	2.5	10	25
	VA−H−4T45G
	VA−H−4T55G	400	615	275	270	590	123.5	3.0	10	35
	VA−H−4T75G
	VA−H−4T90G	465	745	335	343	715	156	3.0	12	55
	VA−H−4T110G
	VA−H−4T132G	540	890	395	370	855	205.5	4.0	14	85
	VA−H−4T160G

Applications

High Frequency Speed VFD Representative Industry

As an advanced China Automation & Control Systems Provider,The use of V&T frequency drive (VFDs): a VFD is used to regulate the speed and torque of the Motor according to the variation of the load in order to improve the Motor energy efficiency. The High Performance Universal Inverter of Shandong V&T Technologies Co.,Ltd. is suitable for CNC Drives Inverter, Grinder, Printing Packaging, Petrochemical, Textile, Cable Machinery, Food Packaging, Electric Vehicles, Plastic Machinery, Metal Products Equipment, Centrifuges, Universal fields and High-end applications ,High accuracy and speed application requiring closed-loop vector or torque control.
